Conveyor Belt – PVC Type

(Adjustable Height)

Conveyor BC: Selectable Height Adjustment:

1. 700 to 1000 mm (300mm adjustment range)
2. 750 to 1100 mm (350mm adjustment range)
3. 800 to 1150 mm (350mm adjustment range)
4. 900 to 1300 mm (400mm adjustment range)
5. 950 to 1400 mm (450mm adjustment range)
6. 1000 to 1500 mm (500mm adjustment range)

Select one height range.

Height Specifications:

• B/C 75cm base height: 35 cm adjustable range
• B/C 80cm base height: 35 cm adjustable range
• B/C 85cm base height: 40 cm adjustable range
• B/C 90cm base height: 40 cm adjustable range
• B/C 95cm base height: 45 cm adjustable range
• B/C 100cm base height: 50 cm adjustable range

Select one height range.

• PVC Conveyor Belt for material handling and transport.
• Equipped with an electric motor for adjustable flow speed.
• Facilitates easy material transport and system setup.
• Standard machine height: 75 cm (non-adjustable).
• Product load capacity on conveyor: Approximately 30 kg.

Polyvinylchloride (PVC) Properties:

• PVC offers good resistance to high temperatures, tensile strength, and puncture resistance.
• Features excellent wear resistance.
• Demonstrates good resistance to oils and odors.
• Provides robust durability against abrasion.

Example Configurations:

Optional Inverter Motor: Motor speed ratio 30-40 meters/minute. Additional cost: 7500 THB

• Conveyor Belt PVC: 500x1000x750 mm
• Speed: 40 m/min; Leg adjustment: 100 mm.
• Total belt load capacity: 3 kg.
• Price: 32,000 THB

• Conveyor Belt PVC: 500x1500x750 mm
• Speed: 40 m/min; Leg adjustment: 100 mm.
• Total belt load capacity: 3 kg.

• Conveyor Belt PU, Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min; Leg adjustment: 100 mm.
• Total belt load capacity: 30 kg.

• Conveyor Belt PVC, Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable legs.
• Total belt load capacity: 20 kg.

• Conveyor Belt PU, Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min; Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PVC, Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min; Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PU, Stainless Steel 304 Frame: 500×3000 mm + Stainless Steel 304 Table
• Speed: 3-5 m/min; Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PU, Stainless Steel 304 Frame: 400×3000 mm + Stainless Steel 304 Table
• Speed: 3-5 m/min; Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PU, Stainless Steel 304 Frame: 500×1500 mm
• Speed: 8-13 m/min; Adjustable legs.
• Total belt load capacity: 30 kg.

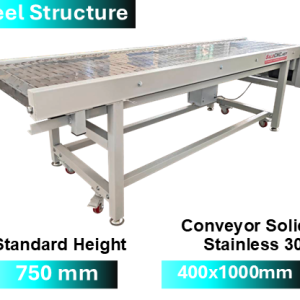

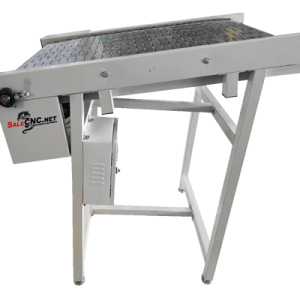

• Steel Structure Stainless 304 Conveyor, Solid Belt
• Speed: 3-5 m/min; Adjustable legs.
• Total belt load capacity: 40 kg.

• Conveyor Belt PVC: 300x1500x750 mm
• Conveyor Belt PVC: 300x1000x750 mm
• Conveyor Belt PVC: 300x1200x300 mm
• Speed: 8-13 m/min
• Weight capacity: 2-3 kg.

•
• Conveyor Belt PVC, Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt, Stainless Steel 304 Mesh, Stainless Steel 304 Frame: 600×1000 mm
• Speed: 3-5 m/min; Adjustable legs.
• Total belt load capacity: 40 kg.

Conveyor Belt PVC Speed Specifications

English Specifications

Thai Specifications

https://youtu.be/nlWc4jRPjM0?si=pLIe53J2EObnbE1w

Product load capacity on conveyor: Approximately 30 kg.

• Standard motor power: 120W. Optional motor powers: 200W, 400W, 600W.

Differences Between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More economical than PU and stainless steel.
     ✅ Suitable for general applications like packaging or transporting materials without oil and grease.
     ❌ Not resistant to high temperatures; may wear faster than PU.
   • PU (Polyurethane)
     ✅ Superior resistance to oils, grease, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher tear resistance and longer service life than PVC.
     ❌ Higher cost than PVC.
   • Stainless Steel
     ✅ High strength, resistant to impact and wear.
     ✅ Suitable for industries requiring high levels of hygiene, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and potentially heavier.

2. Recommended Applications

   • PVC → General goods transport, such as packaging and electronics.
   • PU → Food, pharmaceutical industries, and applications involving contact with oils or grease.
   • Stainless Steel → Applications requiring high hygiene standards or environments with high temperatures or humidity, such as food and beverage processing plants, and heavy industries.
