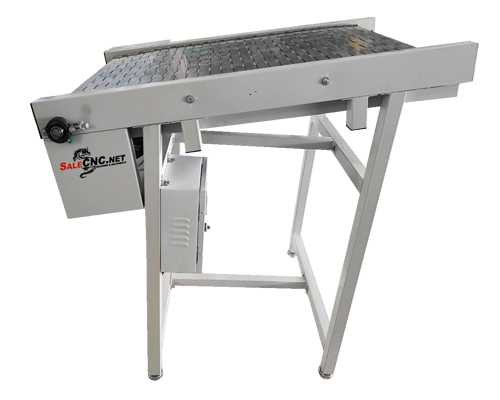

Conveyor Steel Structure, Solid SS304, 700x1300mm

Conveyor Steel Structure

Solid SS304 700x1300mm

Height: 1260 mm
Height 2: 1037 mm
Maximum Weight: 30 Kg.
Speed: 30:1 ratio, 5-10 m/min
Motor: 400W

Control cabinet

Side view of conveyor unit

Rear view of conveyor unit

Front view of conveyor unit

• Conveyor belt for moving items, PVC type.
• Equipped with an electric motor for adjustable flow speed.
• Facilitates material handling and item conveying, with easy installation and operation.
• Standard machine height: 75 cm (non-adjustable).
• Product load capacity on conveyor: approximately 30 kg.

Polyvinylchloride (PVC)

• PVC exhibits good resistance to high temperatures, tensile strength, and puncture resistance.
• PVC offers excellent wear resistance.
• PVC provides good resistance to oils and odors.
• PVC demonstrates robust durability against abrasion.

Example Product:

• Conveyor Belt PU: 600×2500 mm
• Motor: 200W
• Speed: 16-25 m/min
• Includes adjustable leveling feet and free-spinning casters.

Example Product:

Inverter Motor: Speed ratio of 30-40 meters/minute. Additional cost: 7500 THB.

• Conveyor Belt PVC: 500x1000x750 mm
• Speed: 40 m/min, adjustable leveling feet (100 mm range).
• Total conveyor load capacity: 3 Kg.
• Price: 32,000 THB.

• Conveyor Belt PVC: 500x1500x750 mm
• Speed: 40 m/min, adjustable leveling feet (100 mm range).
• Total conveyor load capacity: 3 Kg.

• Conveyor Belt PU with Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min, adjustable leveling feet (100 mm range).
• Total conveyor load capacity: 30 Kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min, adjustable feet.
• Total conveyor load capacity: 20 Kg.

• Conveyor Belt PU with Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min, adjustable feet.
• Total conveyor load capacity: 30 Kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min, adjustable feet.
• Total conveyor load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table: 500×3000 mm
• Speed: 3-5 m/min, adjustable feet.
• Total conveyor load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table: 400×3000 mm
• Speed: 3-5 m/min, adjustable feet.
• Total conveyor load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame: 500×1500 mm
• Speed: 8-13 m/min, adjustable feet.
• Total conveyor load capacity: 30 Kg.

• Steel Structure Stainless 304 Conveyor Solid

• Speed: 3-5 m/min, adjustable feet.
• Total conveyor load capacity: 40 Kg.

• Conveyor Belt PVC: 300x1500x750 mm
• Conveyor Belt PVC: 300x1000x750 mm
• Conveyor Belt PVC: 300x1200x300 mm
• Speed: 8-13 m/min
• Weight: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min, adjustable feet.
• Total conveyor load capacity: 30 Kg.

• Conveyor Mesh Stainless Steel 304 with Stainless Steel 304 Frame: 600×1000 mm
• Speed: 3-5 m/min, adjustable feet.
• Total conveyor load capacity: 40 Kg.

Conveyor Belt PVC Speed Specifications

England

Thai

https://youtu.be/nlWc4jRPjM0?si=pLIe53J2EObnbE1w

Product on conveyor capacity: Approximately 30 kg.

• Standard motor: 120W. Optional motors: 200W, 400W, 600W.

Differences between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More economical than PU and Stainless Steel.
     ✅ Suitable for general applications such as packaging or transporting materials without oil and grease.
     ❌ Not resistant to high temperatures and may wear faster than PU.
   • PU (Polyurethane)
     ✅ Superior resistance to grease, oil, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher resistance to tearing and longer lifespan than PVC.
     ❌ Higher cost than PVC.
   • Stainless Steel
     ✅ High strength, resistant to impact and wear.
     ✅ Suitable for industries requiring high levels of hygiene, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ High cost and potentially heavier weight.

2. Recommended Applications

   • PVC → General goods transport, e.g., packaging, electronics.
   • PU → Food and pharmaceutical industries, or applications involving contact with oil or grease.
   • Stainless Steel → Applications demanding high hygiene standards or environments with high temperatures or humidity, e.g., food and beverage manufacturing plants, heavy industry.
