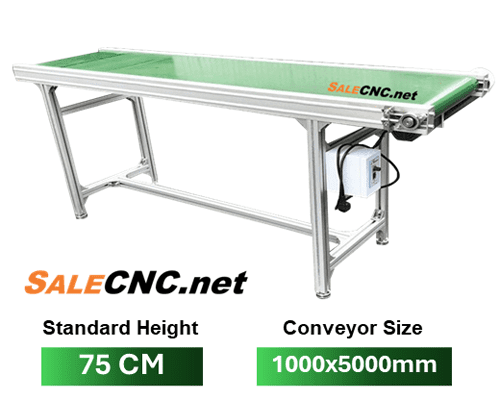

Conveyor Belt PVC

PVC Conveyor Belt

Standard Height (Non-Adjustable)

• PVC conveyor belt for material handling and transport.
• Equipped with an electric motor for adjustable belt speed.
• Facilitates easy material transport and conveying; simple installation and operation.
• Standard machine height: 75 cm (Non-adjustable).
• Product load capacity on conveyor: approximately 30kg.

Polyvinyl Chloride (PVC) Properties

• PVC offers excellent resistance to high temperatures, tensile strength, and puncture resistance.
• Features high wear resistance.
• Provides good resistance to oils and is odor-resistant.
• Durable and exhibits high resistance to abrasion.

Example Products:

Inverter Motor OptionMotor Speed Ratio: 30-40 meters/minute. Additional Cost: 7500 THB

• Conveyor Belt PVC: 500x1000x750 mm
• Speed: 40 m/min. Adjustable leg supports: 100 mm.
• Total belt load capacity: 3 Kg.
• Price: 32,000 THB

• Conveyor Belt PVC: 500x1500x750 mm
• Speed: 40 m/min. Adjustable leg supports: 100 mm.
• Total belt load capacity: 3 Kg.

• Conveyor Belt PU with Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min. Adjustable leg supports: 100 mm.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min. Adjustable leg supports.
• Total belt load capacity: 20 Kg.

• Conveyor Belt PU with Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min. Adjustable leg supports.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min. Adjustable leg supports.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame and Stainless Steel 304 Table: 500×3000 mm
• Speed: 3-5 m/min. Adjustable leg supports.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame and Stainless Steel 304 Table: 400×3000 mm
• Speed: 3-5 m/min. Adjustable leg supports.
• Total belt load capacity: 30 Kg.

• Conveyor Belt PU with Stainless Steel 304 Frame: 500×1500 mm
• Speed: 8-13 m/min. Adjustable leg supports.
• Total belt load capacity: 30 Kg.

• Steel Structure Stainless 304 Conveyor Solid

• Speed: 3-5 m/min. Adjustable leg supports.
• Total belt load capacity: 40 Kg.

• Conveyor Belt PVC: 300x1500x750 mm
• Conveyor Belt PVC: 300x1000x750 mm
• Conveyor Belt PVC: 300x1200x300 mm
• Speed: 8-13 m/min
• Weight capacity: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min. Adjustable leg supports.
• Total belt load capacity: 30 Kg.

• Conveyor Belt Stainless Mesh with Stainless Steel 304 Frame: 600×1000 mm
• Speed: 3-5 m/min. Adjustable leg supports.
• Total belt load capacity: 40 Kg.

Conveyor Belt PVC Speed Specifications

**Technical Specifications**

**Thai Language Section**

Product load capacity on conveyor: approximately 30kg

• Standard motor: 120W. Optional motors: 200W, 400W, 600W.

Comparison of PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ Lower cost compared to PU and stainless steel.
     ✅ Suitable for general applications such as packaging or material transport not involving oil and grease.
     ❌ Not resistant to high temperatures and may wear faster than PU.
   • PU (Polyurethane)
     ✅ Superior resistance to oils, greases, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher resistance to tearing and longer service life than PVC.
     ❌ Higher cost than PVC.
   • Stainless Steel
     ✅ High strength, resistant to impact and wear.
     ✅ Suitable for applications requiring high levels of hygiene, such as food and beverage processing industries.
     ✅ Resistant to high temperatures and chemicals.
     ❌ Higher cost and potentially heavier.

2. Recommended Applications

   • PVC → General cargo transport applications, e.g., packaging, electronics.
   • PU → Food and pharmaceutical industries, and applications involving contact with oils or greases.
   • Stainless Steel → Applications requiring high hygiene standards or operating in high-temperature or high-humidity environments, such as food and beverage manufacturing plants, and heavy industry.
