Conveyor Belt – PVC Type

(Adjustable Height)

Conveyor BC – Select Height Adjustment Option:

1. 700 to 1000 mm (300mm Belt Width)
2. 750 to 1100 mm (350mm Belt Width)
3. 800 to 1150 mm (350mm Belt Width)
4. 900 to 1300 mm (400mm Belt Width)
5. 950 to 1400 mm (450mm Belt Width)
6. 1000 to 1500 mm (500mm Belt Width)

(Select one height option)

Corresponding Height Adjustments:

• 75 cm Base Height: 35 cm adjustment range
• 80 cm Base Height: 35 cm adjustment range
• 85 cm Base Height: 40 cm adjustment range
• 90 cm Base Height: 40 cm adjustment range
• 95 cm Base Height: 45 cm adjustment range
• 100 cm Base Height: 50 cm adjustment range

(Select one height option)

• PVC Conveyor Belt for material handling and transport.
• Equipped with an electric motor for adjustable speed control.
• Facilitates easy material transfer and conveying, with simple installation and operation.
• Standard machine height: 75 cm (non-adjustable).
• Product load capacity on conveyor: Approximately 30 kg.

Polyvinylchloride (PVC) Properties:

• PVC offers good resistance to high temperatures, tensile strength, and cutting/puncture.
• Exhibits excellent wear resistance.
• Good resistance to oils and odors.
• Durable and resistant to abrasion.

Example Products:

Inverter Motor Upgrade – Motor Speed Ratio 30-40 meters/minute – Additional cost: 7500 THB

• Conveyor Belt PVC 500x1000x750 mm
• Speed: 40 m/min; Leveling Legs: 100 mm adjustment.
• Total belt load capacity: 3 kg.
• Price: 32,000 THB

• Conveyor Belt PVC 500x1500x750 mm
• Speed: 40 m/min; Leveling Legs: 100 mm adjustment.
• Total belt load capacity: 3 kg.

• Conveyor Belt PU with Stainless Steel Frame: 400x1500x800 mm
• Speed: 8-13 m/min; Leveling Legs: 100 mm adjustment.
• Total belt load capacity: 30 kg.

• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 20 kg.

• Conveyor Belt PU with Aluminum Profile Frame: 500×4500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 kg.

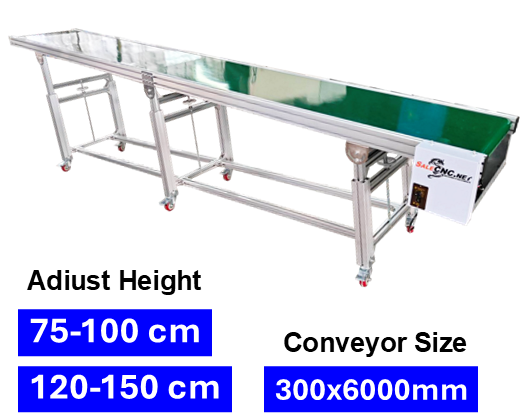

• Conveyor Belt PVC with Aluminum Profile Frame: 300×6000 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table: 500×3000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PU with Stainless Steel 304 Frame + Stainless Steel 304 Table: 400×3000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 30 kg.

• Conveyor Belt PU with Stainless Steel 304 Frame: 500×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 kg.

• Steel Structure Stainless 304 Conveyor Solid

• Speed: 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 40 kg.

• Conveyor Belt PVC 300x1500x750 mm
• Conveyor Belt PVC 300x1000x750 mm
• Conveyor Belt PVC 300x1200x300 mm
• Speed: 8-13 m/min
• Load Capacity: 2-3 kg.

•
• Conveyor Belt PVC with Aluminum Profile Frame: 300×1500 mm
• Speed: 8-13 m/min; Adjustable Legs.
• Total belt load capacity: 30 kg.

• Conveyor Mesh Stainless Steel 304 with Stainless Steel 304 Frame: 600×1000 mm
• Speed: 3-5 m/min; Adjustable Legs.
• Total belt load capacity: 40 kg.

Speed Specifications for Conveyor Belt PVC

English Specifications

Thai Specifications

Product load capacity on conveyor: Approximately 30 kg.

• Standard motor power: 120W. Optional upgrades available: 200W, 400W, 600W.

Differences between PVC, PU, and Stainless Steel Conveyor Belts

1. Materials and Properties

   • PVC (Polyvinyl Chloride)
     ✅ Flexible and offers moderate chemical resistance.
     ✅ More economical than PU and stainless steel.
     ✅ Suitable for general applications such as packaging or material transport without oil and grease contamination.
     ❌ Less resistant to high temperatures and may wear faster than PU.
   • PU (Polyurethane)
     ✅ Superior resistance to oils, grease, and chemicals compared to PVC.
     ✅ Smoother surface, ideal for food and pharmaceutical industries.
     ✅ Higher tear resistance and longer service life than PVC.
     ❌ Higher cost than PVC.
   • Stainless Steel
     ✅ High strength, resistant to impact and wear.
     ✅ Suitable for industries requiring high hygiene standards, such as food and beverage production.
     ✅ Resistant to high temperatures and chemicals.
     ❌ Higher cost and potentially heavier.

2. Suitable Applications

   • PVC → General goods transport, e.g., packaging, electronics.
   • PU → Food, pharmaceutical industries, and applications involving contact with oil or grease.
   • Stainless Steel → Applications requiring high cleanliness or demanding environments with high heat or humidity, such as food processing plants, beverage production, and heavy industries.
